Wedge Wire Screen (V-Wire Screen)
Non-clogging V-wire screens for mining, water and process filtration, slots from 20 μm.
Product Introduction
Wedge wire screen — also known as V-wire or profile wire screen — is a premium metallic filtering element built by resistance-welding V-shaped profile wires to support rods at every intersection. The V-shaped wires create slots that widen inwardly, so particles pass through instead of lodging: the result is a genuinely non-clogging screen with high open area and exceptional load-bearing strength.
Manufactured in SS304, 316, 316L, 321 and duplex 2205, with slot openings from 20 microns to 10 mm. Supplied as flat or curved screen panels, cylinders and baskets, sieve bends (arc screens) and pipes — for mining and coal preparation, water intake and wastewater, food processing and petrochemical service.
Key Features
- V-shaped profile wires — non-clogging, self-cleaning slot geometry
- Slot openings from 0.02 mm (20 μm) to 10 mm

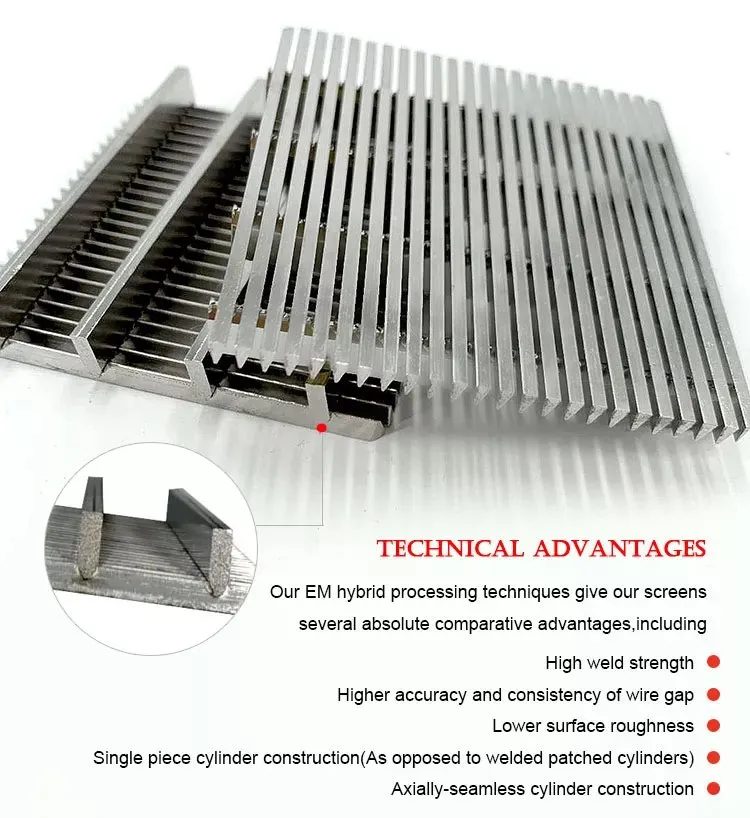

- Continuous welding at every intersection — extreme mechanical strength
- SS304, 304L, 316, 316L, 321, duplex 2205
- High open-area ratio — higher throughput than woven or perforated alternatives
- Forms: screen panels, cylinders/baskets, sieve bends, pipes
Specifications
| Material grades | Stainless steel 304, 304L, 316, 316L, 321, 2205 (duplex) |
|---|---|
| Slot size (aperture) | 0.02 mm (20 μm) – 10 mm (customizable) |

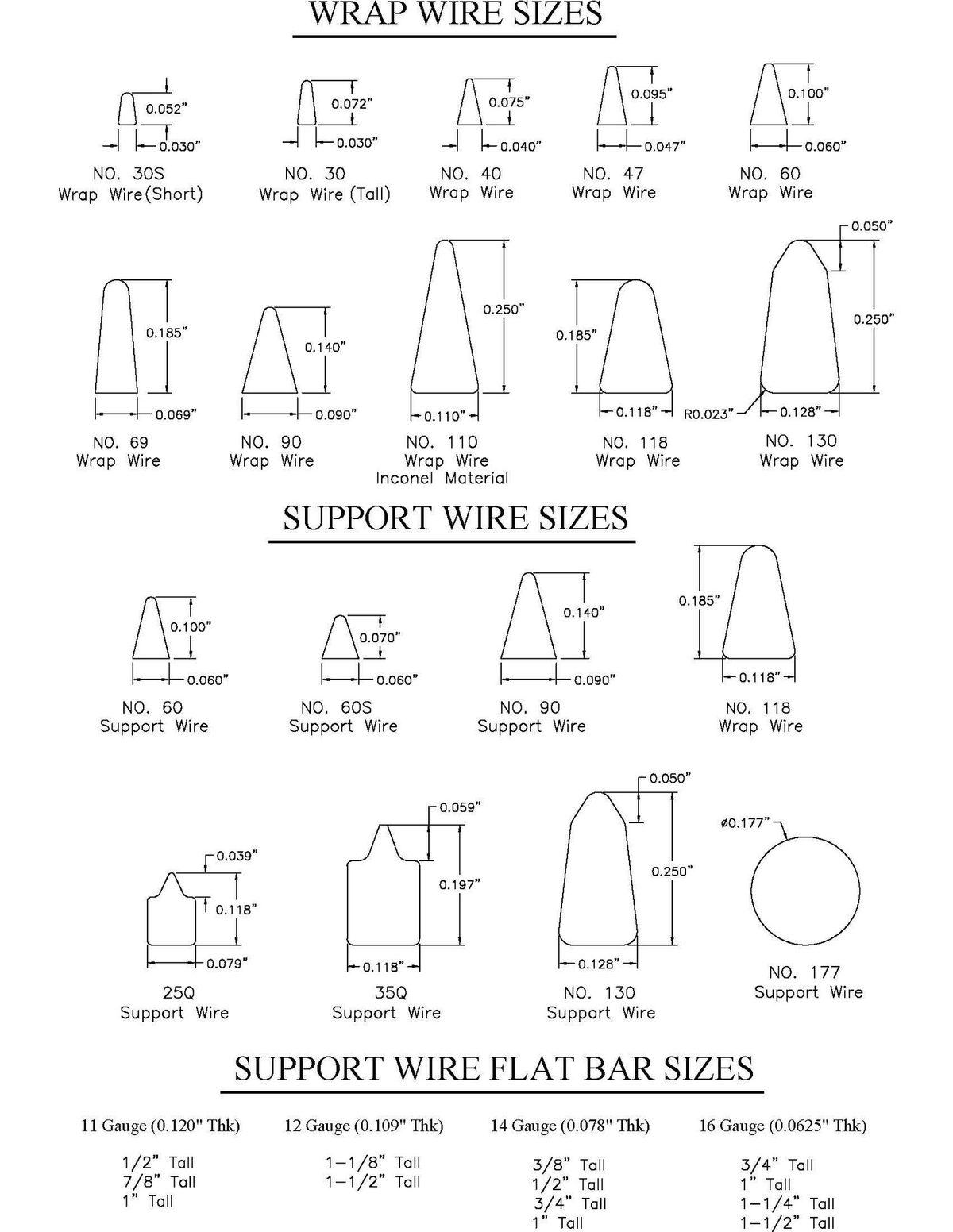

| Profile wire | V-shape / triangle wire (non-clogging orientation) |
| Support rods | Round bars, triangular bars, or flat bars |

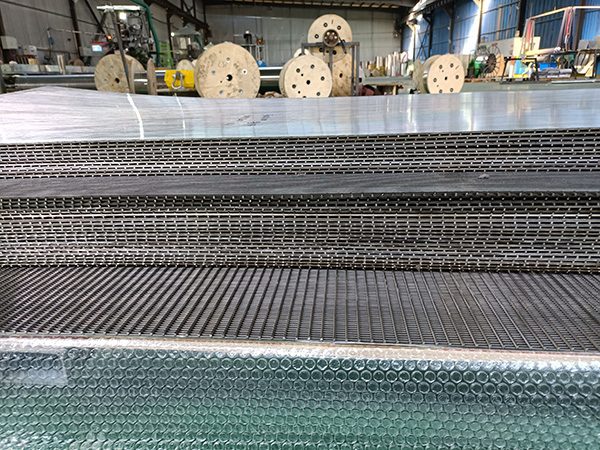

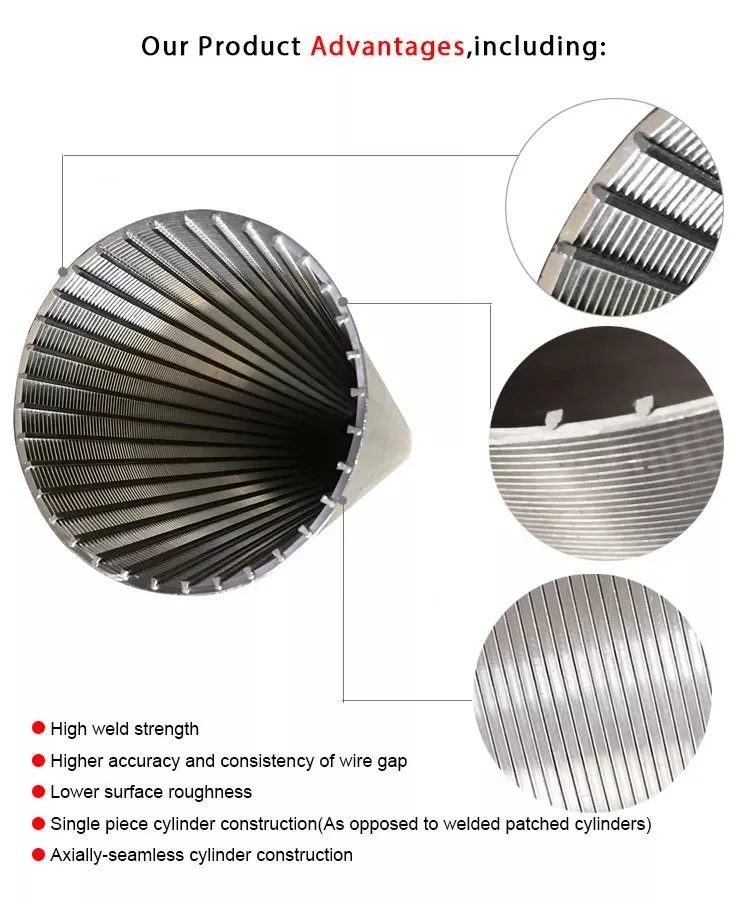

| Product forms | Screen panels, cylinders/baskets, sieve bends (arc screens), pipes |
Suitable Applications
Mining & MineralsHeavy-duty screening for ore, coal, aggregate and mineral processing.
Water TreatmentIntake screens, pre-filtration and wastewater filtration media.
Oil & GasSand control, mud filtration and fuel purification screens.
Food & BeverageHygienic filtration mesh and food-grade bags for food and beverage processing.Frequently Asked Questions
The V-shaped wires form slots that widen inwardly — a particle that enters the slot keeps moving through instead of wedging. Combined with the smooth welded surface, this gives the screen its self-cleaning, anti-blinding behavior.
Slots run from 20 microns to 10 mm. Tell us the particle size to retain and the application (sizing, dewatering, intake screening) and we will recommend the opening.
Yes — flat and curved panels, cylinders, baskets, sieve bends and pipes are all manufactured to your drawings.
