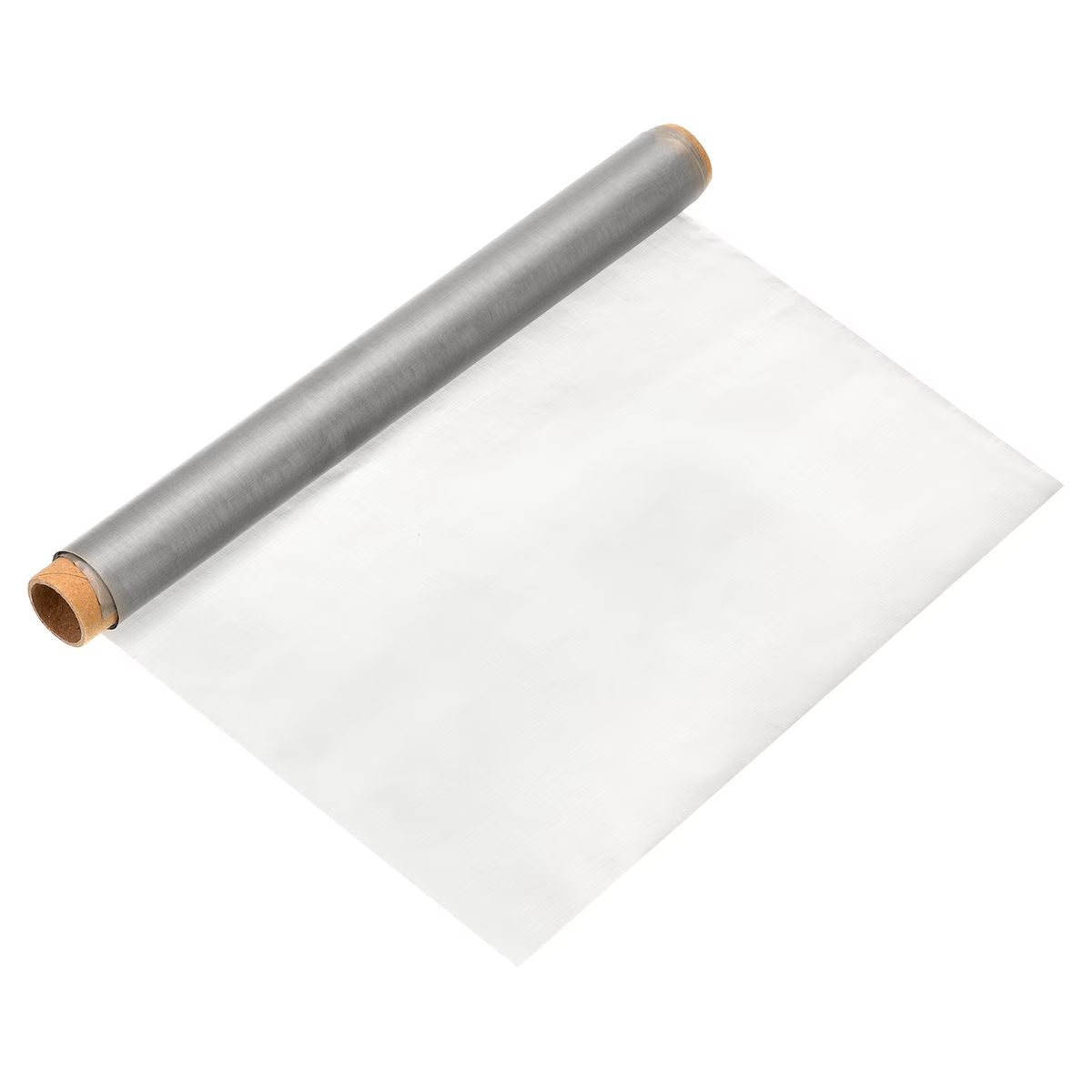

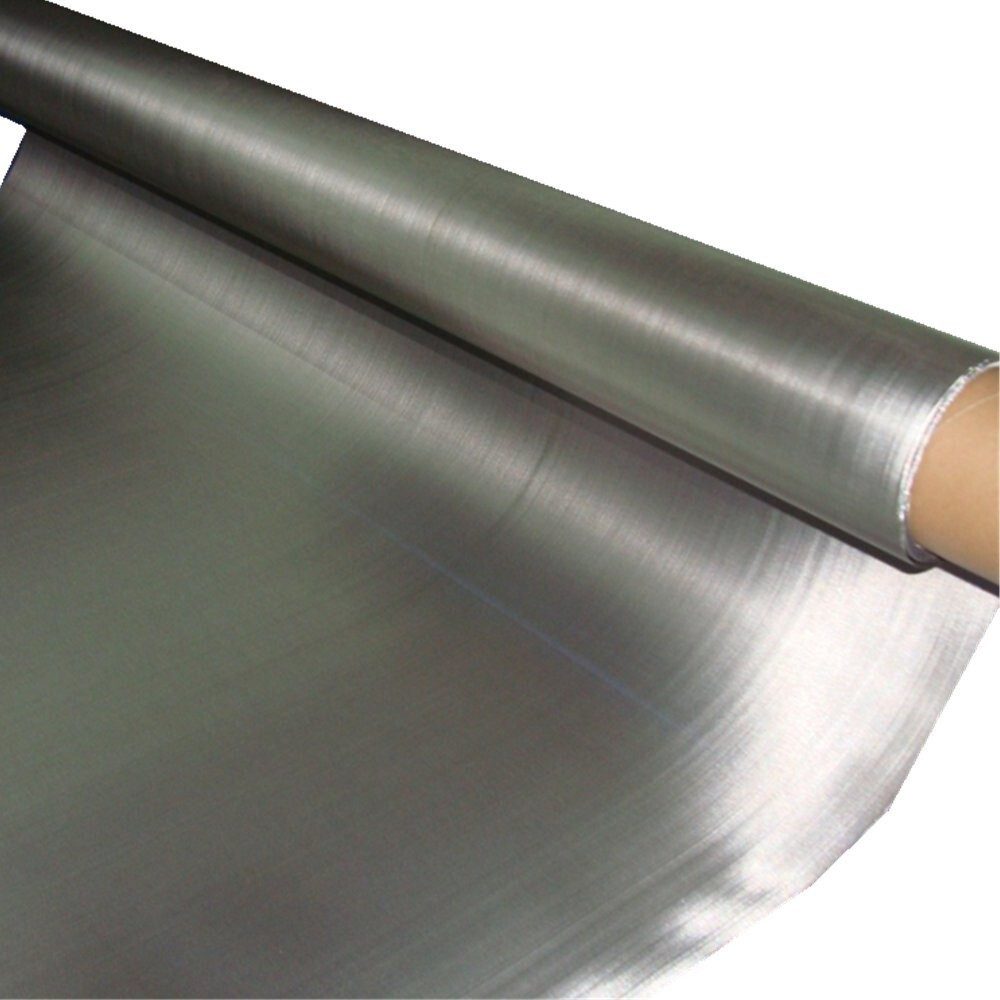

Stainless Steel Screen Printing Mesh
Ultra-precision SS printing mesh, 80–640 mesh, 11–100 μm wire, for electronics & solar.
Product Introduction

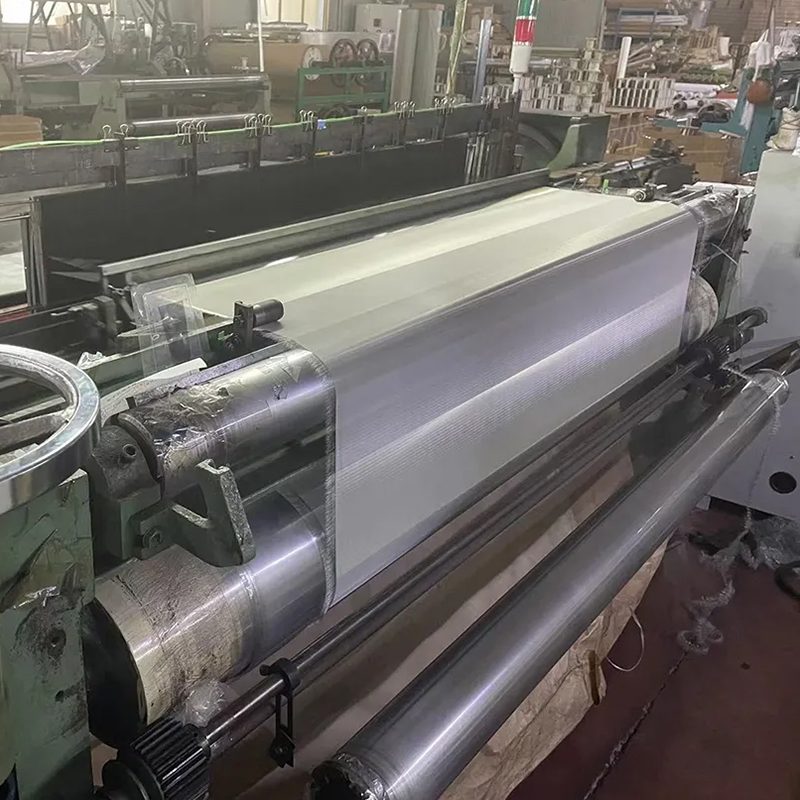

Ultra-precision, high-tension mesh woven from ultra-thin stainless steel wires on advanced automated looms — with flawless geometric accuracy for high-end screen printing. Where micrometer-level precision is required, it has largely replaced polyester: solar cell gridlines, multi-layer PCBs, touch screen displays.
Stretchable to extremely high tension with minimal elongation for perfect registration on high-speed automated presses; ultra-fine wires give maximum open area and minimal mesh thickness for clean release of high-viscosity silver, copper and glass pastes. Three grades cover the range: standard SUS 304/316, super high-tension 304HP, and ultra-thin UT series with wires down to 11–15 microns.
Key Features
- Mesh count 80–640 per inch; wire diameter 11–100 μm
- Grades: standard SUS 304/316, super high-tension 304HP, ultra-thin UT series
- High tension, low elongation — perfect registration at speed
- Maximum open area and minimal thickness — clean paste release
- Extreme dimensional stability: no moisture absorption or heat expansion
- Withstands abrasive pastes and aggressive cleaning solvents
- Roll widths 1000–1580 mm; custom widths available
Specifications
| Material grades | SUS 304N, 304HP, 316L; specialized high-tensile alloys |
|---|---|
| Mesh count | 80 – 640 mesh per inch |
| Wire diameter | 11 μm – 100 μm |
| Mesh thickness | 25 μm – 160 μm |
| Theoretical ink volume | Custom designs optimized per paste deposition requirement |

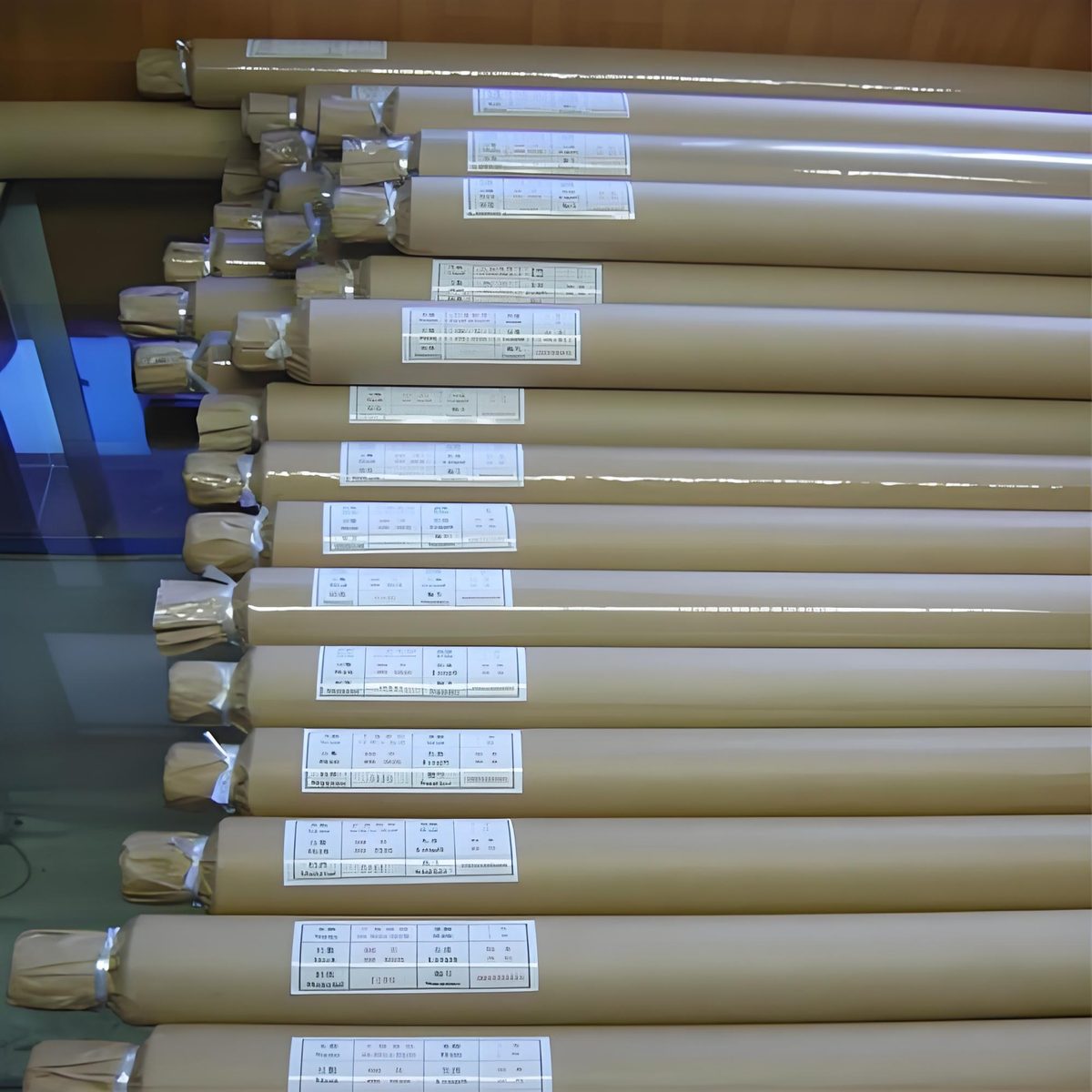

| Standard roll width | 1000, 1220, 1300, 1580 mm, or customized |
Suitable Applications
Frequently Asked Questions
Choose stainless steel when you need micrometer-level precision, extreme tension and zero elongation — solar, PCB, display and MLCC printing. Choose polyester mesh for textile, graphics and general commercial printing at lower cost.
304HP (super stainless) offers higher tensile strength and lower elongation for ultra-high tension stretching. UT series uses ultra-thin 11–15 μm wires for micro-electronics and thin-film circuits.
Standard 1000–1580 mm rolls; custom widths are manufactured to order.
