Polyester Filter Mesh (PET Monofilament)
Dimensionally stable PET mesh, 10–2000 μm — the acid-resistant counterpart to nylon.
Product Introduction

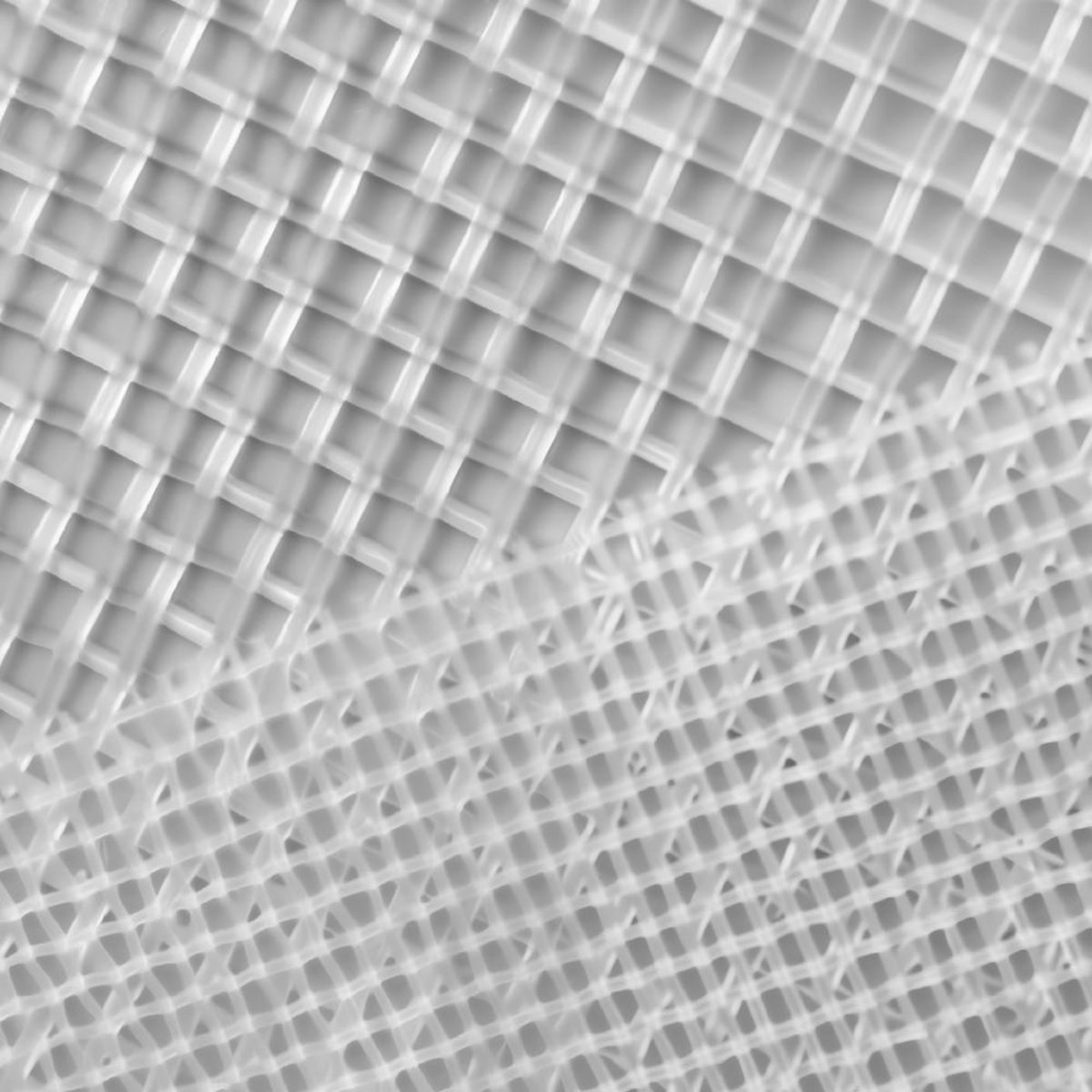

High-precision fabric woven from 100% polyester (PET) monofilament yarns — exceptional dimensional stability with minimal elongation, so apertures stay accurate under continuous high pressure and tension. Where nylon rules alkaline service, polyester rules acidic: excellent resistance to strong acids, oxidizing agents and organic solvents (pH 1–9).
It also outperforms nylon in heat (continuous 130°C, peak 150°C) and wet environments — near-zero moisture absorption means no swelling and consistent flow rates. Micron ratings from 10 to 2000 μm, a long-lasting medium for liquid-solid separation, gas filtration and dust collection.
Key Features
- 100% PET monofilament, plain weave — outstanding dimensional stability
- Micron ratings 10 μm – 2000 μm; mesh count 15–500 per inch
- Excellent acid and solvent resistance (pH 1–9)
- Continuous 130°C / peak 150°C — outperforms nylon in heat
- Near-zero moisture absorption — no swelling, consistent flow in wet service
- High tensile strength; resists tearing, stretching and abrasion
Specifications
| Material | 100% polyester (PET) monofilament |
|---|---|
| Weave | Plain weave |
| Micron rating | 10 μm – 2000 μm |
| Mesh count | 15 – 500 mesh per inch |
| Max. operating temperature | Continuous 130°C (266°F) / peak 150°C (302°F) |
| Chemical resistance | Excellent for acids and solvents; poor for strong alkalis |
Suitable Applications
Chemical ProcessingCorrosion-resistant filtration media for acids, alkalis, solvents and catalysts.
Water TreatmentIntake screens, pre-filtration and wastewater filtration media.
Food & BeverageHygienic filtration mesh and food-grade bags for food and beverage processing.
Pharmaceutical & BiotechnologyPrecision filtration media for pharma, biotech and botanical extraction.Frequently Asked Questions
Match to chemistry and temperature: acids or oxidizers → polyester; alkalis → nylon; above ~95°C continuous → polyester; maximum abrasion duty → nylon. When both fit, polyester's dimensional stability usually wins for precision filtration.
Practically no — its very low moisture absorption keeps apertures and flow rates consistent in wet and humid applications, unlike natural fibers.
Standard roll widths with custom widths on request — send your required width and quantity for a quotation.
Need Polyester Filter Mesh (PET Monofilament) in a Custom Size?
Send your specification or drawing — our engineers will confirm feasibility and quote within 24 hours.
