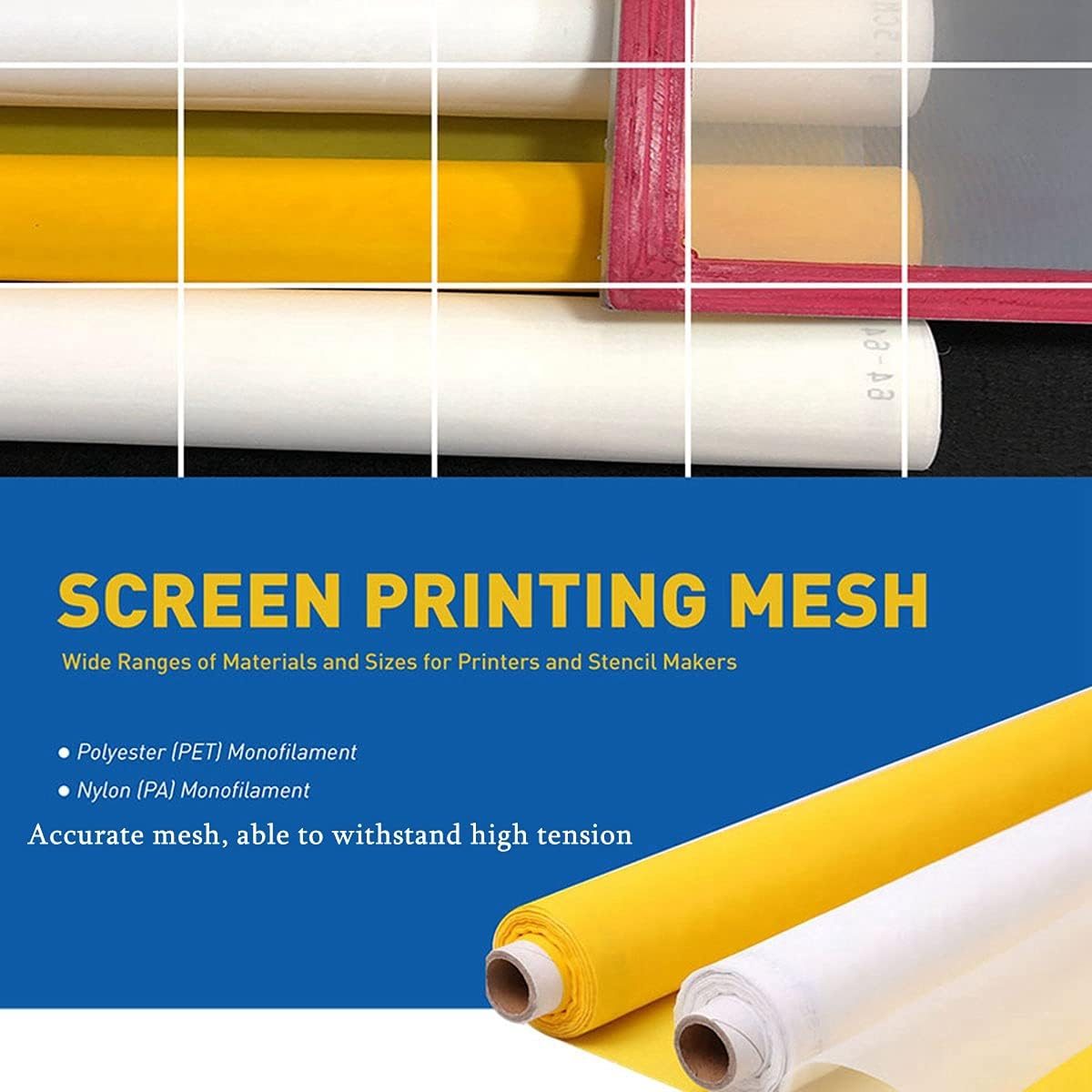

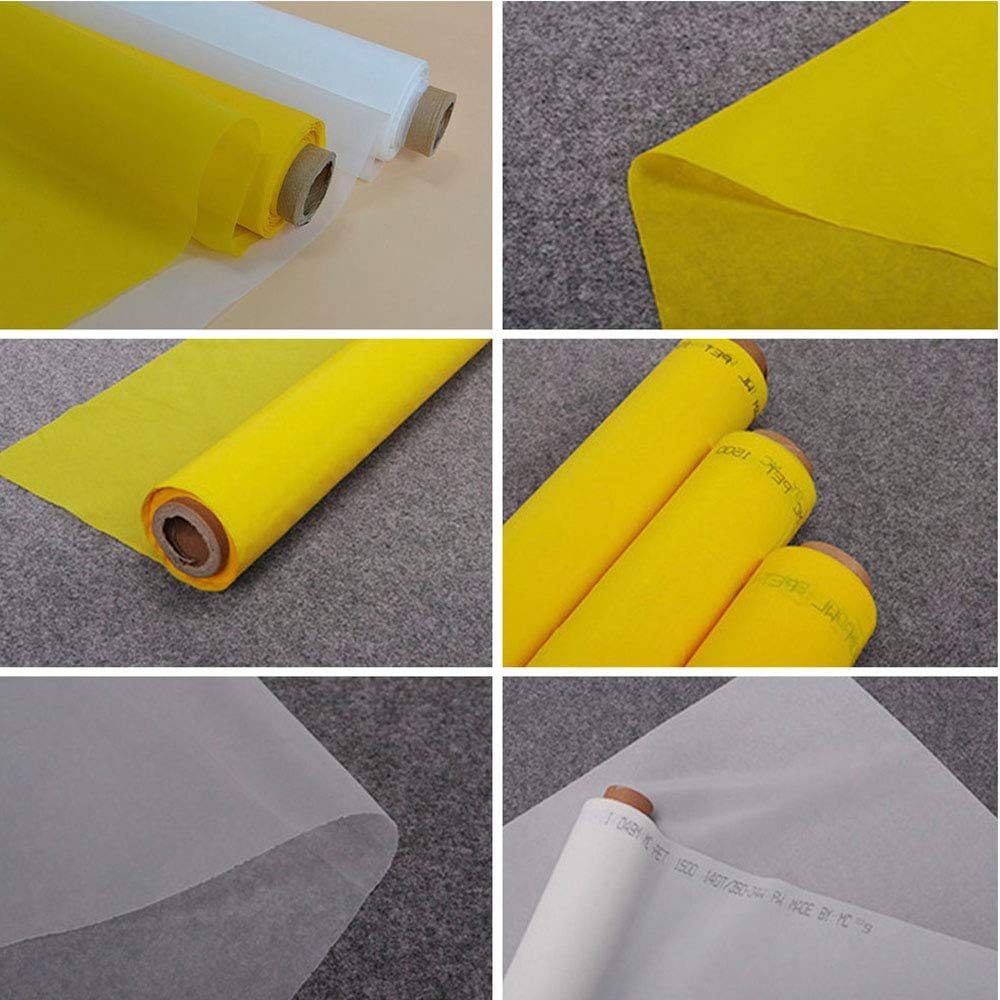

Polyester Screen Printing Mesh
High-tension PET printing mesh, 10T–165T, white/yellow, for textile & graphics.
Product Introduction
High-precision monofilament technical fabric woven from premium polyester yarns — the definitive mesh for razor-sharp print definition, uniform ink deposit and flawless registration in textile, graphics, ceramics and electronics printing. Strict heat-setting and tension stabilization deliver high tensile strength with ultra-low elongation and virtually zero structural relaxation over time.
Thread counts from 10T to 165T (25–420 mesh/inch) in white for fast exposure and yellow for halation-free fine detail; plain weave for standard accuracy, twill for high-density ink deposition. Treated surface for strong emulsion adhesion — fewer pinholes, longer stencil life per frame.
Key Features
- 100% monofilament polyester (PET), heat-set and tension-stabilized
- Thread count 10T–165T (25–420 mesh per inch)
- White (fast exposure) and yellow (halation-free fine detail)
- Plain weave standard; twill weave for high-density ink deposition
- Ultra-low elongation — flawless multi-color registration
- Treated surface: strong emulsion adhesion, longer stencil life
- Rolls 30/50 m; widths 1.15–3.6 m
Specifications
| Material | 100% monofilament polyester (PET) |
|---|---|
| Mesh count | 10T – 165T (25 – 420 mesh per inch) |
| Color options | White (lower counts); yellow (high counts — prevents light scattering) |
| Weave types | Plain weave (1:1) standard; twill weave for high-density deposition |
| Standard roll length | 30 m, 50 m, or custom |
| Standard roll width | 1.15, 1.27, 1.58, 1.65, 2.20 m, up to 3.6 m |
Suitable Applications
Frequently Asked Questions
It depends on ink and detail: coarse counts (24T–43T) for heavy plastisol and specialty inks; mid-range (55T–77T) for general garment work; high counts (90T–120T+) for fine detail and halftones. Tell us your ink and artwork for a recommendation.
White exposes faster and suits lower counts. Yellow mesh absorbs scattered UV light, preventing halation — the standard choice for high counts and fine detail.
Yes — see our screen printing frames, available pre-stretched with low-elongation polyester mesh at 15–35 N tension.
